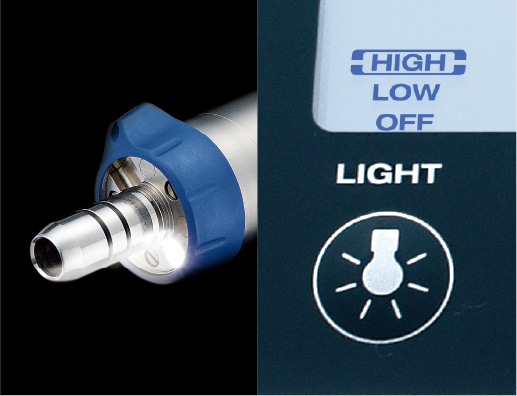

Light with intensity adjustment function
The intensity of the LED handpiece can be adjusted in three levels according to the practitioner's preference or in response to the environment of the clinic.
Selectable water flow level
In order to effectively cool a tip, the water flow can be selected from 5 levels to match the type of tip and the situation of the oral cavity, with a maximum flow of 75 ml per minute. Effective water flow reduces heat buildup in the tip of the tip, preventing thermal damage to osteocytes.
GEAR Key
Use to set gear ratio of the attached handpiece before use.
(20:1,1:1,1:2,1:3,1:5)
MEMORY Key
You can save settings to program memory according to the details of the procedure or the type of tip used. The set program can easily be activated with the program button, eliminating the need for annoying operations.

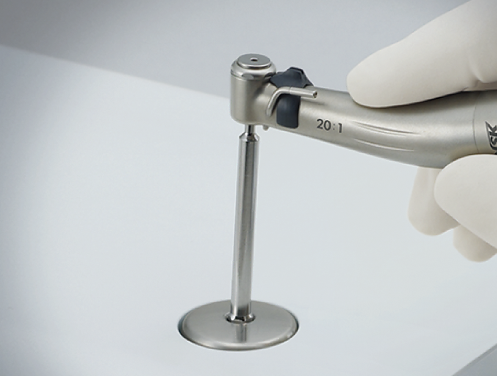

Advanced Handpiece Calibration
Use NSK Surgic Pro AHC to calibrate micromotor and handpiece to the rotational resistance of each individual handpiece prior to operation. AHC guarantees extremely accurate speed and torque for maximum safety during operation.

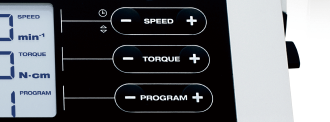

SPEED Key
Press [+] Key to increase, and [-] Key to decrease speed.
TORQUE Key
Press [+] Key to increase and [-] Key to decrease torque range.
PROGRAM Key
You can select saved program numbers from 1 to 8.
Advanced Handpiece Calibration
Use NSK Surgic Pro AHC to calibrate micromotor and handpiece to the rotational resistance of each individual handpiece prior to operation. AHC guarantees extremely accurate speed and torque for maximum safety during operation.

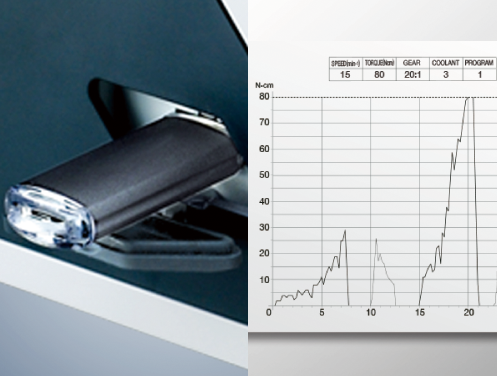

USB memory & Data
Treatment data can be accessed and downloaded using a USB memory stick.
You do not need to install any specific software as the data can be displayed with general-use software which can display csv or bitmap files.
*memory stick isn't included.

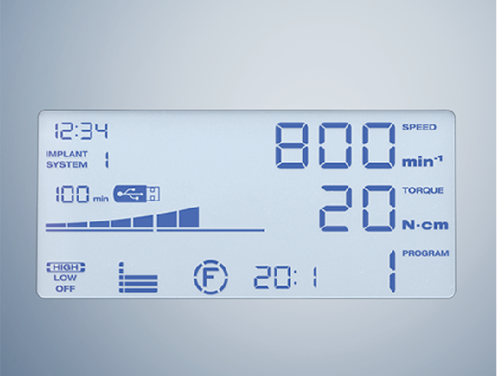

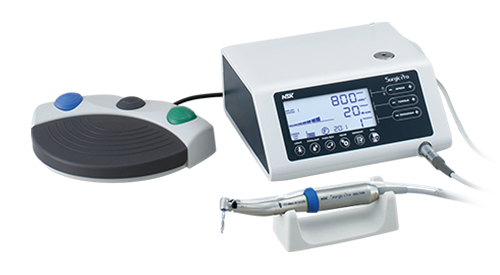

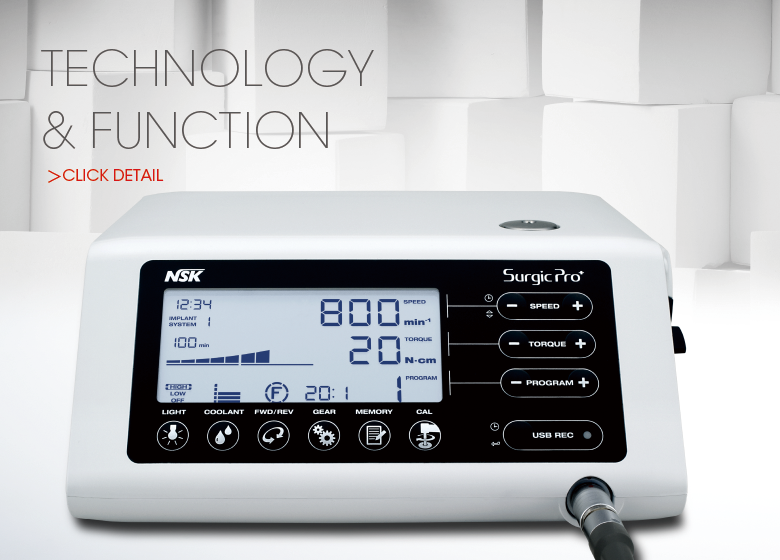

Large LCD panel with backlight
The highly-visible backlit LCD panel and intuitive operations through icon buttons assists in carrying out safe, and accurate procedures.
High-performance irrigation pump
This product is designed for easy, accurate, and speedy attachment of irrigation tubes. The highly-reliable construction ensures that you don't have to worry about malfunctions during a procedures. The noise level of the pump during operation is also reduced for a quieter environment while carrying out procedures.
FWD / REV Key
Use to select the direction of rotation. Press this Key once to change the rotational direction.

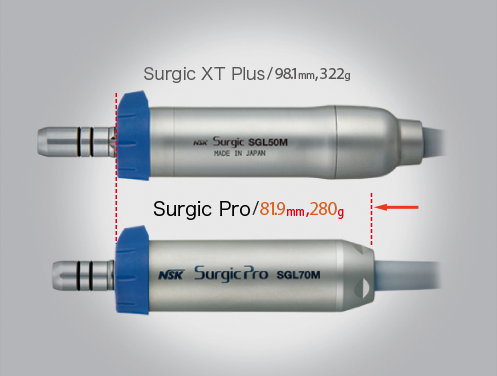

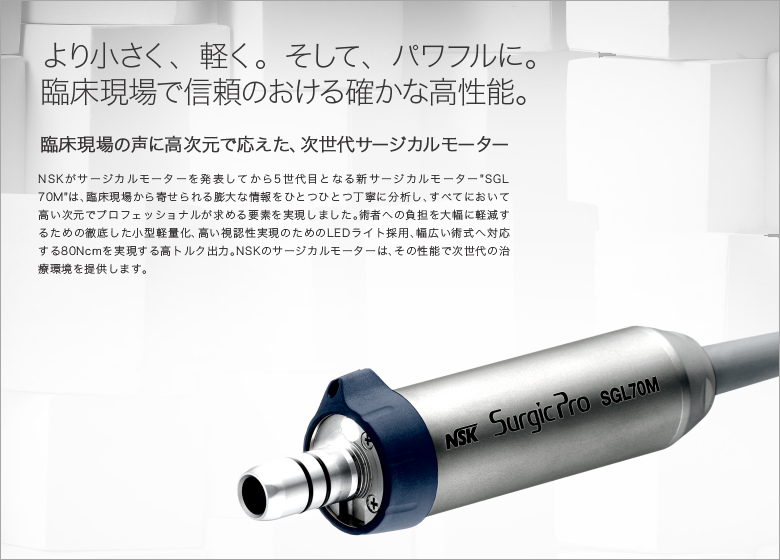

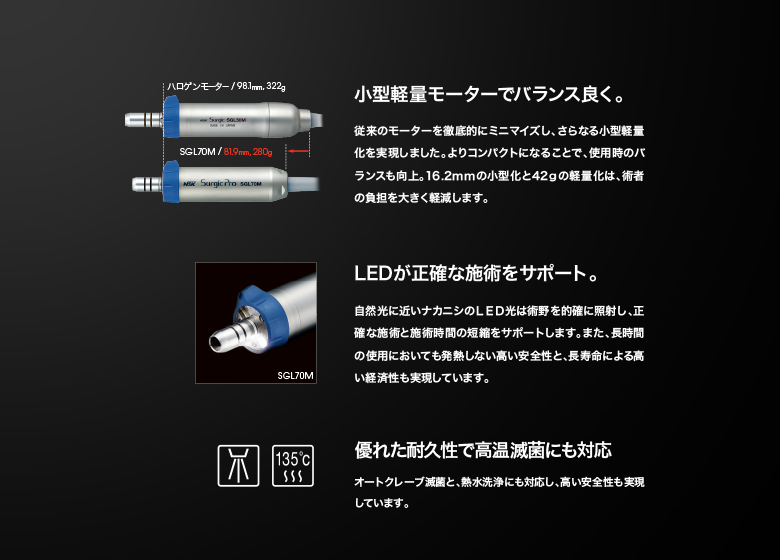

This new surgical micromotor is 16.2mm shorter and weighs 42g less compared to the conventional optic surgical micromotor.

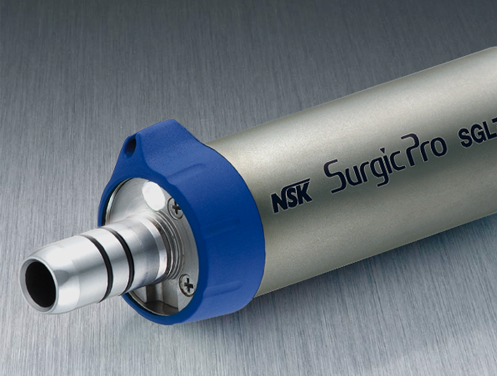

LED illumination helps the clinicians to focus more easily on the treatment area and contributes to precise surgery
Clearer : LEDs generate natural daylight quality light which gives clearer vision when compared to halogen light.
Durable : LED light sources are longer lasting and more durable than halogen bulbs.
Use NSK Surgic Pro AHC to calibrate micromotor and handpiece to the rotational resistance of each individual handpiece prior to operation. AHC guarantees extremely accurate speed and torque for maximum safety during operation.
Treatment data can be accessed and downloaded using a USB memory stick. You do not need to install any specific software as the data can be displayed with general-use software which can display csv or bitmap files.
*memory stick isn't included.
*only SurgicPro+

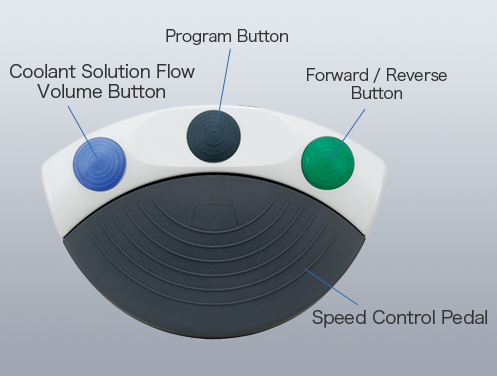

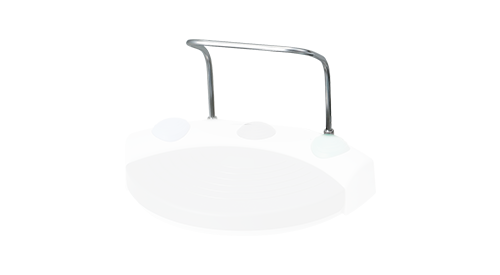

The Foot Control is user friendly and allows operation of all functions within the preset parameters without touching the control panel to avoid accidental activation of the micromotor outside the preset limits. The Surgic Pro/Surgic Pro+ is certificated according to IPX8.

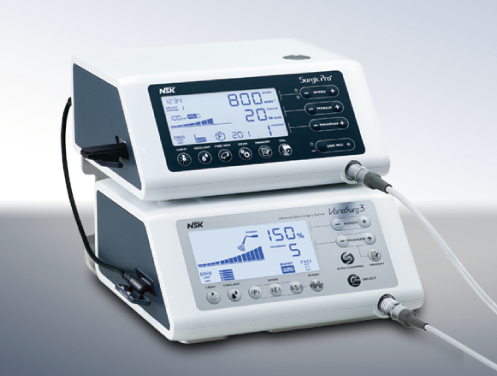

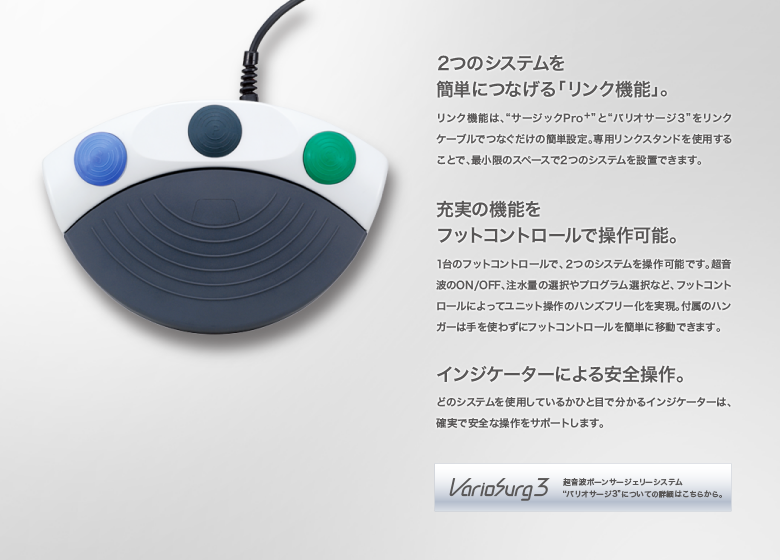

You can operate both the implant motor Surgic Pro and VarioSurg3 ultrasonic bone surgery system with a single foot control by linking the two units with the link cable. Put the two units on the Link Stand and create a compact and space saving, all encompassing surgical treatment centre. The two systems can also be installed together compactly with a Link Stand that takes up minimal space.
