Outstanding Performance & Versatility

The all new Varios series feature the latest developments in piezo technology; The iPiezo engine from NSK assures stable output by automatically adjusting to the optimum frequency depending on the loading of the tip. The new, slimmer Varios series handpieces allow the operator to work more efficiently by improving accessibility to the oral cavity considerably. The new optic Varios handpiece is the slimmest and lightest handpiece currently available in the market*. The twin LED lights assure excellent virtually shadow free visibility, dramatically improving working conditions in the operating area.

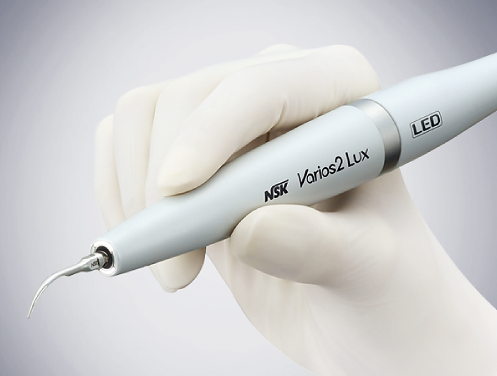

・Slimmest and lightest* handpiece with LED illumination
・iPiezo engine ensures stable power output andperformance

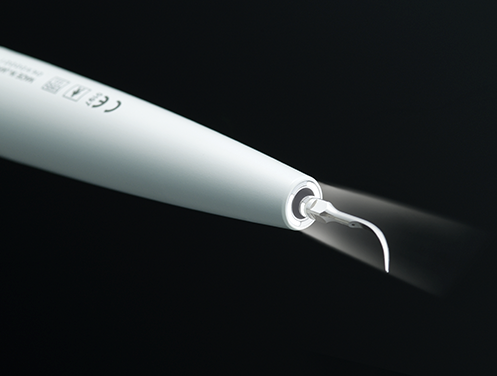

・Twin LED lights through twin optical glass rods

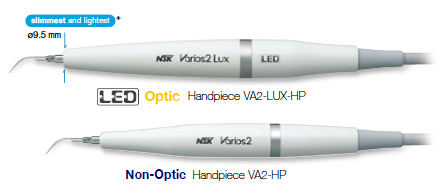

・Optic and non-optic handpieces available

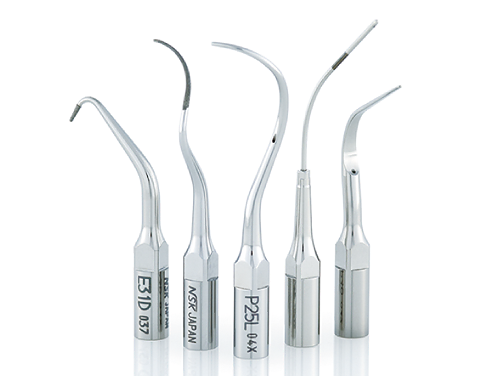

・Extensive tip range for a wide range of applications

Technology & Function

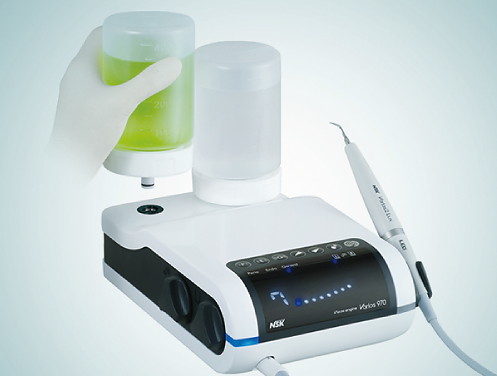

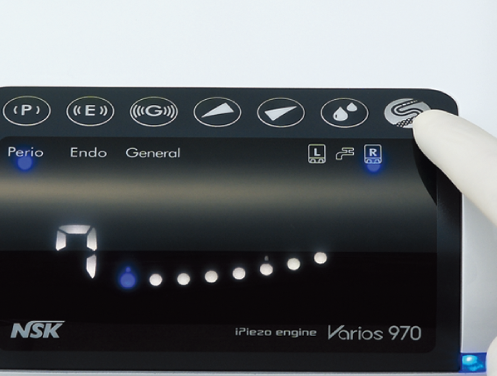

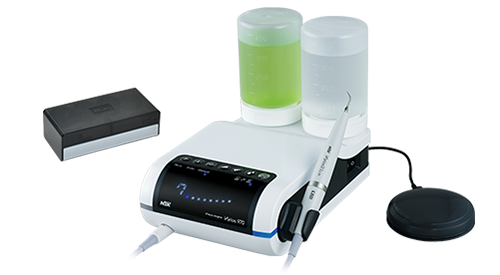

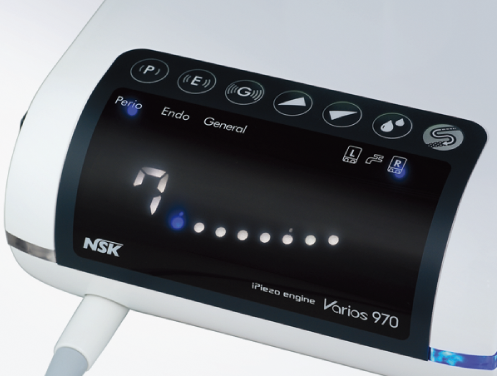

Varios 970

Varios 970

Varios 970 Optic Complete Sets

  • Optic
  • Model:VA970 LUX (120V)
  • Order Code:Y1001166
  • Optic
  • Model:VA970 LUX (230V)
  • Order Code:Y1001168

Varios 970 Non-Optic Complete Sets

  • Non-Optic
  • Model:VA970 (120V)
  • Order Code:Y1001174
  • Non-Optic
  • Model:VA970 (230V)
  • Order Code:Y1001175

Specifications

  • Power Supply
  • AC 120 V or 230 V 50/60 Hz
  • Frequency
  • 28-32 kHz
  • Max. Output
  • 11 W (G mode)
  • Dimensions
  • W 160 x D 270 x H 190 mm (Including Bottle)
  • Unit Weight
  • 2.1 kg (Except Attachment)
  • Bottle Volume
  • 400 mL (x 2 Bottles)

Contents

  • Control Unit
  • Handpiece
  • Handpiece Cord
  • 3 Scaling Tips (G4, G6, G8)

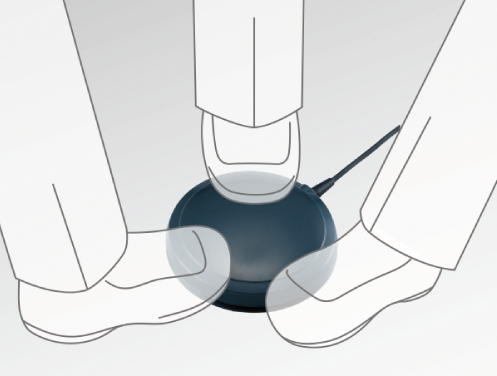

  • Foot Control (FC-70)
  • 2 x Irrigation Bottles
  • 3 x Tip Wrench with Torque Limiter
  • AC Power Cord
  • Sterilization Case

Varios 570

Varios 570

  • Optic
  • Model:VA570 LUX (120V)
  • Order Code:Y1001432
  • Optic
  • Model:VA570 LUX (230V)
  • Order Code:Y1001273

Specifications

  • Power Supply
  • AC 100-240 V 50/60 Hz
  • Frequency
  • 28-32 kHz
  • Max. Output
  • 11 W (G mode)
  • Dimensions
  • W 160 x D 135 x H 65 mm
  • Unit Weight
  • 0.43 kg

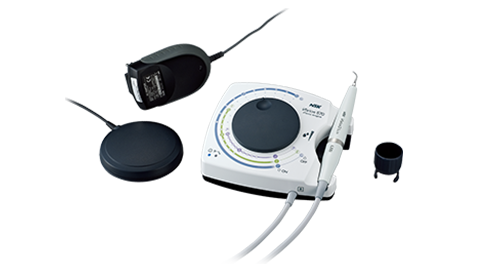

Contents

  • Control Unit with Handpiece Cord
  • AC Adaptor
  • Handpiece
  • Water Filter Set
  • Water Supply Connector
  • Foot Control (FC-70)
  • 3 Scaling Tips (G4, G6, G8)
  • Tip Wrench with Torque Limiter

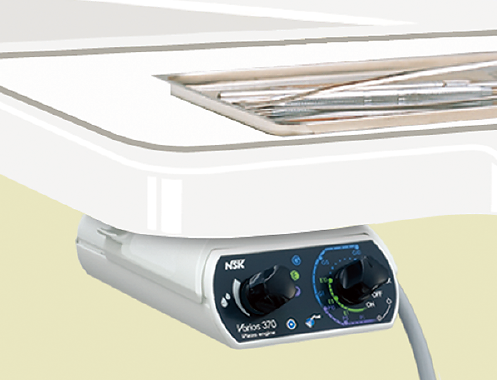

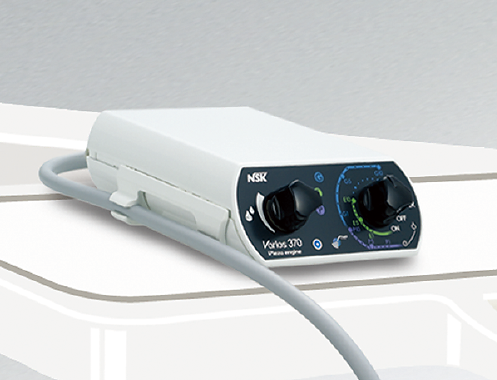

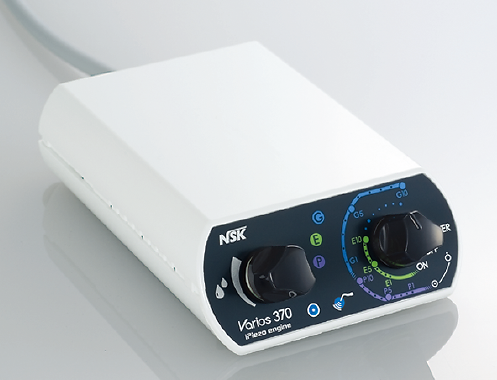

Varios 370

Varios 370

  • Optic
  • Model:VA370 LUX (120 V)
  • Order Code:Y1001956
  • Optic
  • Model:VA370 LUX (230 V)
  • Order Code:Y1001343
  • Non-Optic
  • Model:VA370 (120 V)
  • Order Code:Y1001958
  • Non-Optic
  • Model:VA370 (230 V)
  • Order Code:Y1001340

Specifications

  • Power Supply
  • AC 100-240 V 50/60 Hz
  • Frequency
  • 28-32 kHz
  • Max. Output
  • 11 W (G mode)
  • Dimensions
  • W 80 x D 115 x H 32 mm (without Knob and Cord)
  • Unit Weight
  • 0.43 kg (without Attachment)

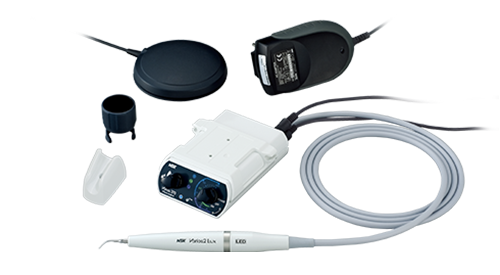

Contents

  • Control Unit with Handpiece Cord
  • Control Unit Holder
  • AC Adaptor
  • Handpiece
  • Handpiece Holder
  • Water Filter Set
  • Water Supply Connector (120 V Only)
  • Foot Control (FC-71)
  • 3 Scaling Tips (G4, G6, G8)
  • Tip Wrench with Torque Limiter

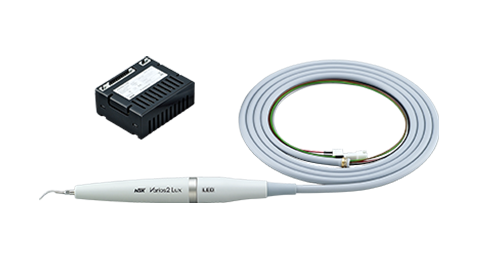

Varios 170

Varios 170

Varios 170 Optic Complete Set

  • Optic
  • Model:VA170LUXS1
  • Order Code:Y1001351

Varios 170 Non-Optic Complete Set

  • Non-Optic
  • Model:VA170S1
  • Order Code:Y1001352

Specifications

  • Power Supply
  • AC 24 V ± 10% (or DC 24-36 V)
  • Frequency
  • 28-32 kHz
  • Max. Output
  • 11 W
  • Dimensions
  • W 63 x D 54 x H 26 mm
  • Module Weight
  • 59 g

Contents

  • Built-in Module
  • Handpiece
  • Handpiece Cord
  • 3 Scaling Tips (G4, G6, G8)
  • 3 x Tip Replacement Wrench with Torque Limiter
  • Sterilization Case
