Portable LED Micromotor; from Denture Adjustment to General Applications

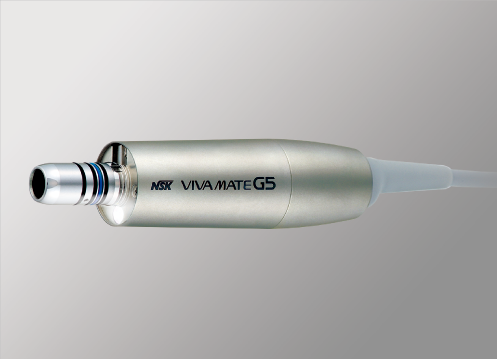

As the latest member of pioneer portable micromotor for mobile dentistry, VIVAMATE series, VIVAMATE G5 provides various functions to meet doctors' mobile dentistry needs. Used with the irrigation and saliva ejection system, Viva-Support, the LED micromotor with internal spray system enables easy and certain teeth cutting and decay removal. In addition, the newly developed control unit with innovative design promises high portability and operability by being both AC and battery power system.

Control Panel Offers Simple and Intuitive Operation
Easy to see necessary information, such as rotation speed setting, power on/off and battery remaining levels. The control panel that allows intuitive operation greatlyreduces stress to operate the instrument.

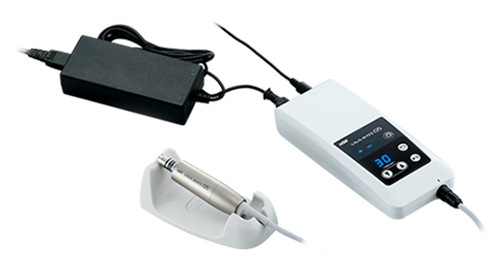

Able to Use Both Rechargeable Battery and AC Adaptor for the Compact Control Unit
Able to operate with rechargeable batteries anywhere. When battery power level is low, just plug in AC adapter into outlet; bring the unit to patient visits without worry. It is very easy to carry since the control unit is palm-size (W 72 x D 180 x H 36 mm) and weighs only 370 g.

Technology & Function

VIVAMATE G5

VIVAMATE G5

  • Optic
  • Model:VIVAMATE G5 230 V SET
  • Order Code:Y1002801

Specifications - Control Unit

  • Dimensions
  • W 72 x D 180 x H 36 mm
  • Weight
  • 370 g
  • Battery Recharge Time
  • Appx. 2 Hours*
  • Battery Contentious Drive Time
  • Appx. 1 Hour*

* varies depending on usage situations

Specifications - Micromotor

  • Dimensions
  • Ø22 x L 68.6 mm
  • Weight
  • 148 g (Include Motor Cord)
  • Speed
  • 3,000-30,000 min-1
  • Torque
  • 3 Ncm (30,000 min-1 While Rotating)

Contents

  • Control Unit
  • Handpiece Stand
  • Motor (Including Motor Cord)
  • AC Adaptor
  • AC Cord

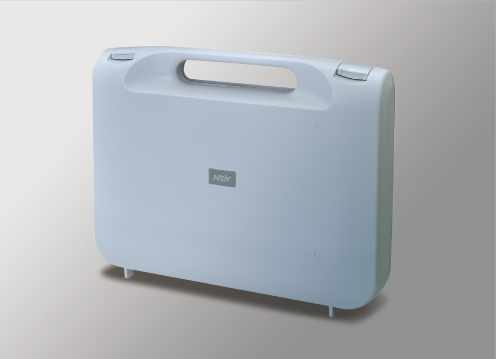

  • Carrying Case
