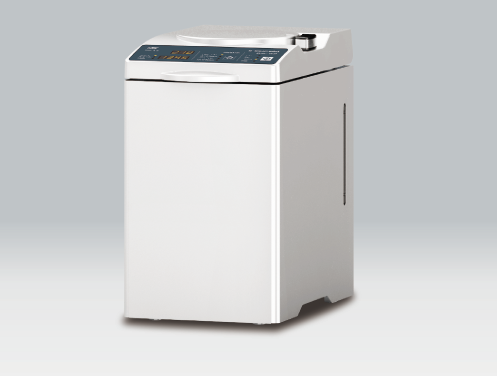

A Handpiece Autoclave Small Enough to Use Anywhere

A handpiece autoclave from a handpiece manufacturer,complying with Europe's Class S sterilization standard.

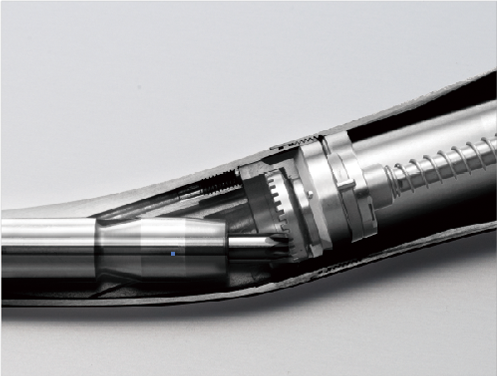

The iClave mini sterilizes eve n the invisible parts of handpieces and is completely portable to use any where.

Technology & Function

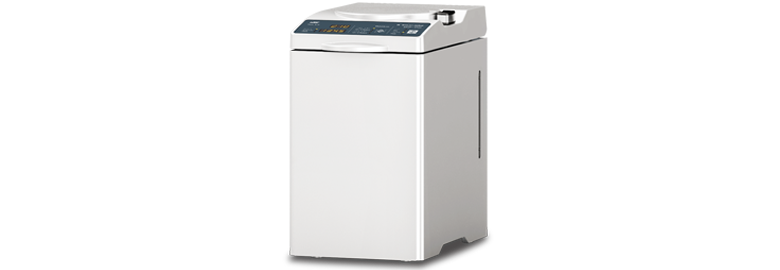

iClave mini

iClave mini

  • Model: iClave mini 230 V
  • Order Code:Y1003074

Specifications

  • External Dimensions
  • W 210 x D 320 x H 360 mm

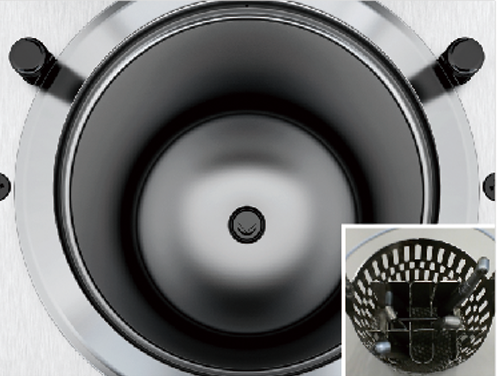

  • Chamber Dimensions
  • Ø130 x 200 mm
  • Chamber Capacity
  • 2.5 Litre
  • Net Weight
  • 15.5 kg
  • Maximum Power Consumption
  • 700 W
  • Supply Voltage CE
  • 230 V 50Hz
  • Air Expulsion System
  • Pressure Deaeration
  • Max Load Solid
  • 1 kg
  • Max Load Porous
  • 0.5 kg

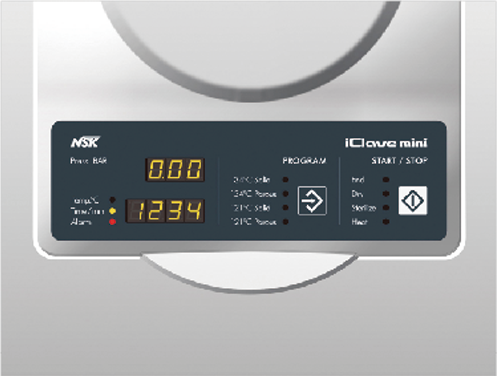

PROGRAMS PARAMETERS CLASS
1 134°C SOLID 134°C 4 min S
2 134°C POROUS 134°C 14 min S
3 121°C SOLID 121°C 20 min S
4 121°C POROUS 121°C 30 min S
