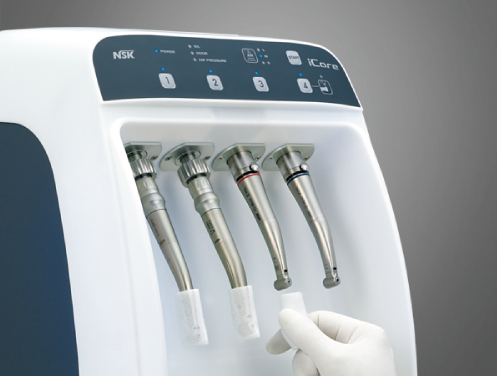

Automatically Lubricates

Technology & Function

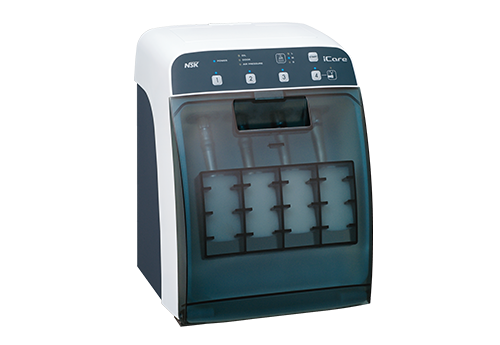

iCare

iCare

Specifications

  • Power Supply
  • AC 100-240 V 50/60 Hz
  • Air Pressure
  • 0.5-0.6 MPa (5.0-6.0 kgf/cm2)
  • Weight
  • 6.5 kg (C2 Type / C3 Type)

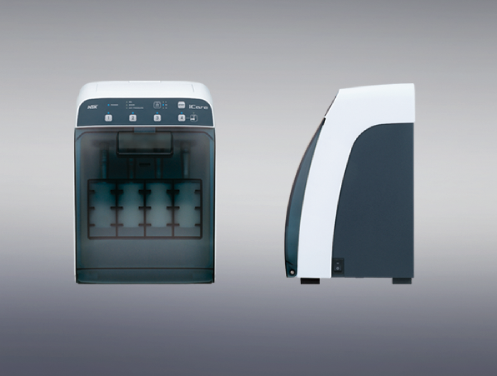

  • Dimension
  • W 280 x D 240 x H 350 mm

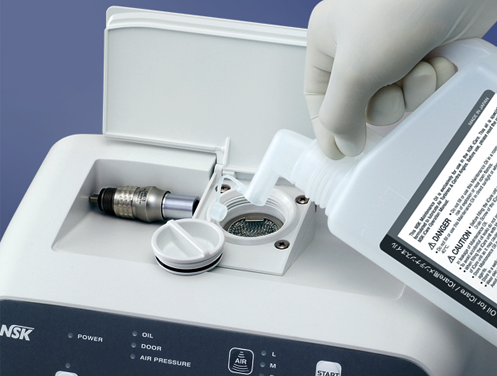

  • Solution Tank Capacity
  • 1.2 L

* Connects only to Midwest 4-hole type
* Air piping is necessary (5.0-6.0 kgf/cm2)

Contents

  • iCare Unit
  • Power Cord
  • Chuck Lubrication Nozzle

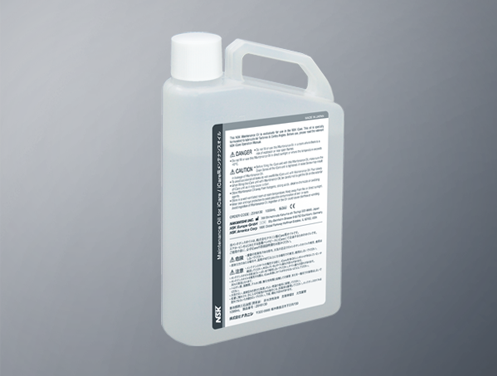

  • Maintenance Oil for iCare (1 Litre)
  • Mist Filter Set
  • Oil Absorber Sheet
  • Air Tube

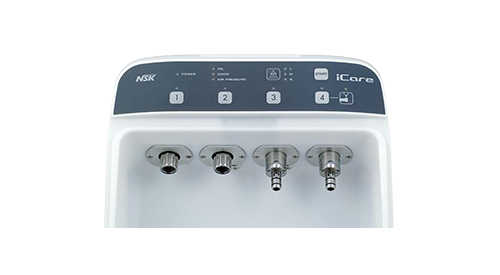

Dual Standard Ports + Dual Rotation Ports

  • iCare
    • Model:iCare C2 Type (120 V)
    • Order Code:Y1002796
    • Model:iCare C2 Type (230 V)
    • Order Code:Y1002787

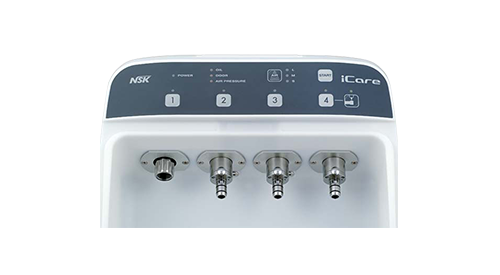

Single Standard Port + Triple Rotation Ports

  • iCare
    • Model:iCare C3 Type (120 V)
    • Order Code:Y1002797
    • Model:iCare C3 Type (230 V)
    • Order Code:Y1002788

iCare Adaptors

MODEL ORDER CODE
PTL Adaptor Z257010 For NSK High Speed Handpieces for PTL-CL-LED Coupling
B2 / M4 Adaptor T904 For Borden 2 hole High Speed Handpieces
KV Adaptor Z257020 For KaVo® High Speed Handpieces for MULTiflex® LUX Coupling
SR Adaptor Z257023 For Sirona® High Speed Handpieces for Quick Coupling
WH Adaptor Z257021 For W&H® High Speed Handpieces for Roto Quick Coupling
BA Adaptor Z280022 For Bien-Air® High Speed Handpieces for Unifix® Coupling
F-Type Adaptor Z280042 For ENDO-MATE TC2, DT, DT2 and TASKAL Wizard Heads

Check with the dealer for the adaptors to mount other manufactures' handpieces.
