Toughness

The S-Max M series contra-angles have dramatically improved durability, and feature an updated internal body design and chuck mechanism.
They are NSK's next-generation standard - a marriage of ergonomic sophistication and smooth cutting feel.
Experience them for yourself.

Technology & Function

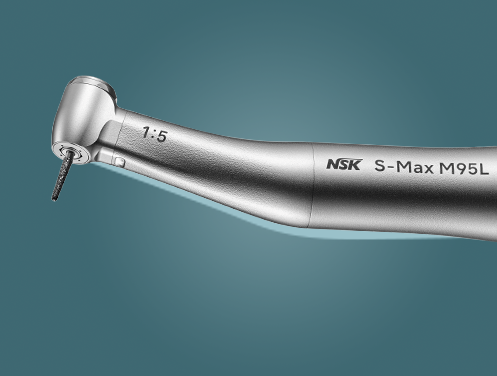

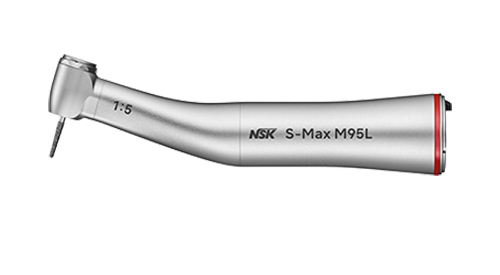

M95L 1:5

M95L

  • Optic
  • Model:M95L
  • Order Code:C1023
  • Non-Optic
  • Model:M95
  • Order Code:C1026

Specifications

  • Gear Ratio
  • 1:5 Increasing
  • Max Speed
  • 200,000 min-1
  • Head Size
  • Ø9.9 x H 14.5 mm
  • For
  • FG Burs (Ø1.6)
  • Body Material
  • Stainless Steel
  • Water Spray
  • Quattro Spray

Features

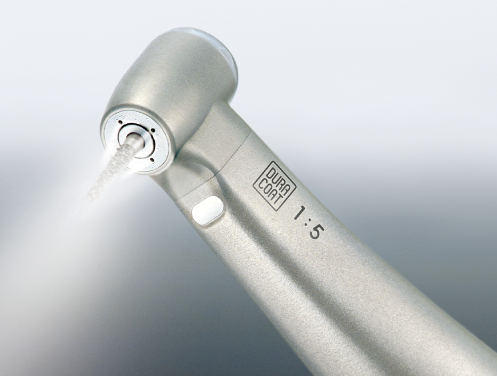

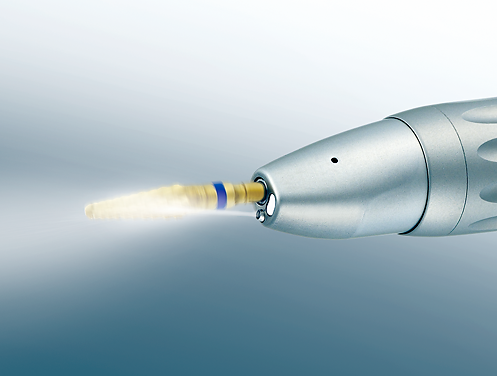

  • Cellular Glass Optics

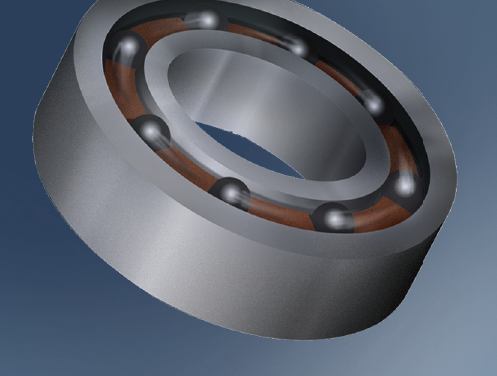

  • Ceramic Bearings
  • Clean Head System

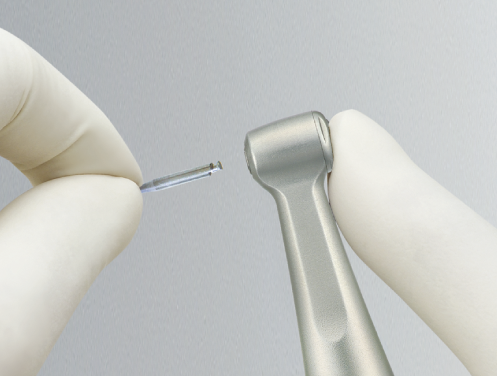

  • Push Button Chuck

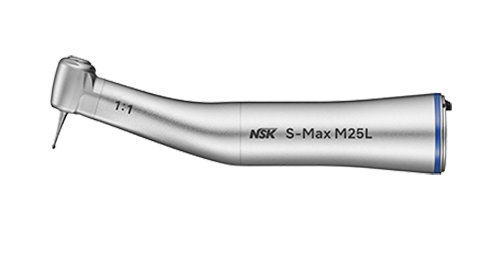

M25L 1:1

M25L

  • Optic
  • Model:M25L
  • Order Code:C1024
  • Non-Optic
  • Model:M25
  • Order Code:C1027

Specifications

  • Gear Ratio
  • 1:1 Direct Drive
  • Max Speed
  • 40,000 min-1
  • Head Size
  • Ø9.6 x H 13.4 mm
  • For
  • CA Burs (Ø2.35)
  • Body Material
  • Stainless Steel
  • Water Spray
  • Single Spray

Features

  • Cellular Glass Optics
  • Clean Head System
  • Push Button Chuck

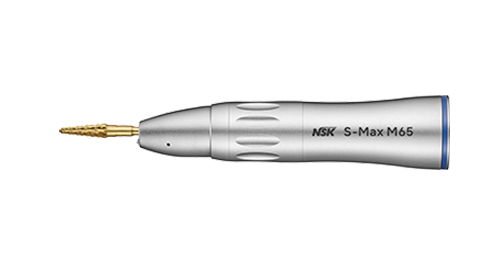

M65 1:1

M65

  • Non-Optic
  • Model:M65
  • Order Code:H1008

Specifications

  • Gear Ratio
  • 1:1 Direct Drive
  • For
  • For HP Burs (Ø2.35) / For CA Burs (Ø2.35)*
  • Water Spray
  • Single Spray
  • Body Material
  • Stainless Steel
  • Max Speed
  • 40,000 min-1

* Need to insert the supplied bur stopper

Features

  • Clean Head System

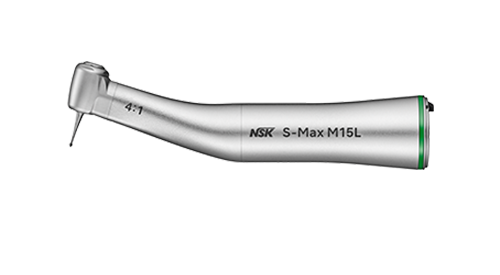

M15L 4:1

M15L

  • Optic
  • Model:M15L
  • Order Code:C1025
  • Non-Optic
  • Model:M15
  • Order Code:C1028

Specifications

  • Gear Ratio
  • 4:1 Reducing
  • Max Speed
  • 10,000 min-1
  • Head Size
  • Ø9.6 x H 13.4 mm
  • For
  • CA Burs (Ø2.35)
  • Body Material
  • Stainless Steel
  • Water Spray
  • Single Spray

Features

  • Cellular Glass Optics
  • Clean Head System
  • Push Button Chuck
