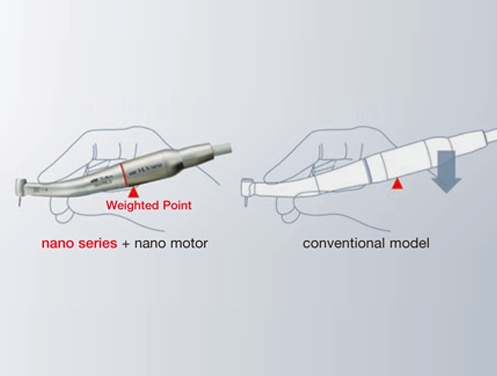

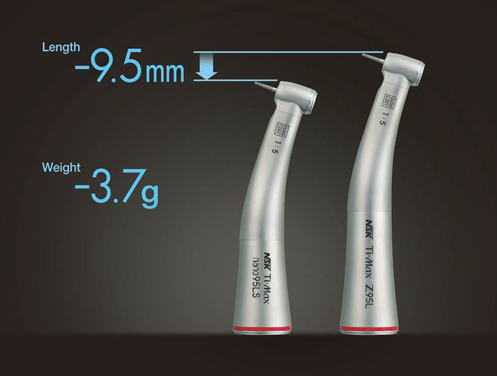

Shorter, Perfectly Balanced

Lighter and perfectly balanced, "nano series" instruments are designed to be natural extensions of the clinician’s hand, ensuring smoother procedures. Even during implant operations that require delicate and precise movements, a "nano series" faithfully mirrors the user’s intent. NSK continues to challenge the limits of manufacturing and pioneer next-generation contra-angles.

Technology & Function

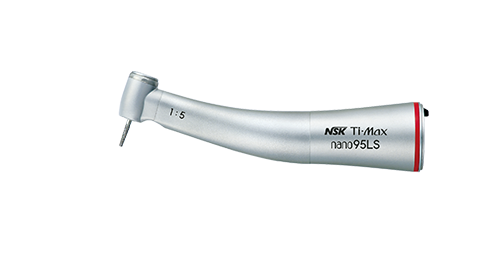

nano95LS 1:5

nano95LS

  • Optic
  • Model:nano95LS
  • Order Code:C1099

Specifications

  • Gear Ratio
  • 1:5 Increasing
  • For
  • FG Burs (Ø1.6)
  • Water Spray
  • Quattro Spray
  • Body Material
  • Titanium
  • Body Coating
  • DURAGRIP
  • Max Speed
  • 200,000 min-1

Features

  • Anti Heat System
  • Cellular Glass Optics
  • Ceramic Bearings
  • Clean Head System
  • Push Button Chuck
  • Microfilter
  • Exceptional Durability

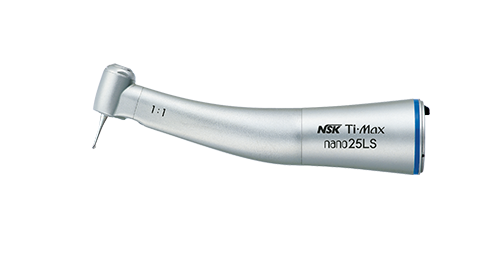

nano25LS 1:1

nano25LS

  • Optic
  • Model:nano25LS
  • Order Code:C1100

Specifications

  • Gear Ratio
  • 1:1 Direct Drive
  • For
  • For CA Burs (Ø2.35)
  • Water Spray
  • Single Spray
  • Body Material
  • Titanium
  • Body Coating
  • DURAGRIP
  • Max Speed
  • 40,000 min-1

Features

  • Anti Heat System
  • Cellular Glass Optics
  • Clean Head System
  • Push Button Chuck
  • Microfilter

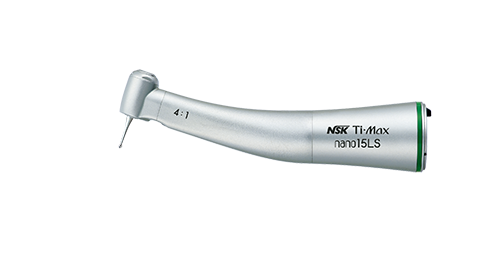

nano15LS 4:1

nano15LS

  • Optic
  • Model:nano15LS
  • Order Code:C1101

Specifications

  • Gear Ratio
  • 4:1 Reduction
  • For
  • For CA Burs (Ø2.35)
  • Water Spray
  • Single Spray
  • Body Material
  • Titanium
  • Body Coating
  • DURAGRIP
  • Max Speed
  • 10,000 min-1

Features

  • Anti Heat System
  • Cellular Glass Optics
  • Clean Head System
  • Push Button Chuck
  • Microfilter

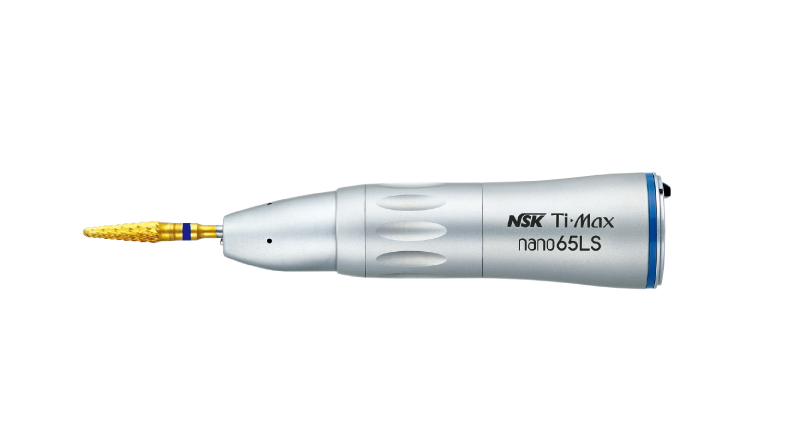

nano65LS 1:1

nano65LS

  • Optic
  • Model:nano65LS
  • Order Code:H1048

Specifications

  • Gear Ratio
  • 1:1 Direct Drive
  • For
  • For HP / CA Burs (Ø2.35)*
  • Water Spray
  • Single Spray
  • Body Material
  • Titanium
  • Body Coating
  • DURAGRIP
  • Max Speed
  • 40,000 min-1

* Need to insert the supplied bur stopper

Features

  • Cellular Glass Optics
  • Clean Head System
